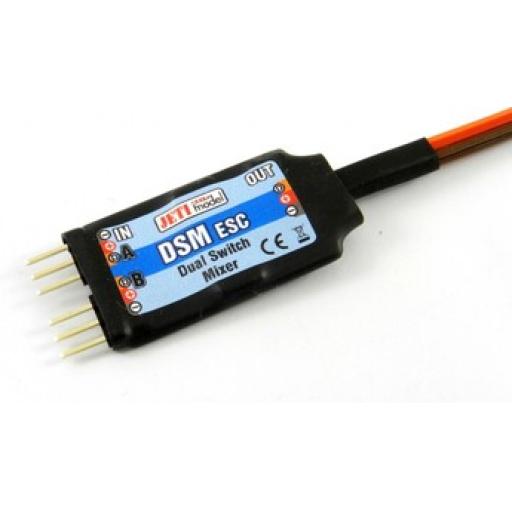

Jeti DSM ESC Dual Switch Mixer battery back up for ESC's

£68.66

Qty

The DSM ESC or Dual Switch Mixer is the companion to the DSM 10. In This instance it is designed to provide a battery back up to a BEC type power supply of an ESC. Should the BEC Power supply fail, then the back up battery is activated and you are able to safely land your model.

The DSM 10 is controlled by a magnetic switch which can be placed inside or outside of the model airplane fuselage. By touching with a special magnet, the system becomes switched on or off. The electronic switch in switched on state is characterised by a minimum transitional resistance.

The contents include a Magmnetic switch plate which can be mounted either inside or outside the fuselage, and the Magnet to operate the switch.

Specifications

Weight [g] 24
Dimensions [mm] 38 x 20 x 7
Sustained current [A] 10
Operational temperature [°C] -20 ... 85
Recommended input voltage [V] 5 ... 8,4
Idle current [µA] 130
Number of battery inputs 2
Input voltage max. [V] 13
Peak current (max 5s) [A] 20
